Copper Shell Motor Commutator Para sa DC Motor
Naghimo kami og labaw sa 1200 ka lain-laing matang sa commutator, lakip na ang hook type, riser type, shell type, planar type, gikan sa OD 4mm ngadto sa OD 150mm, nga kaylap nga magamit sa automotive industry, power tools, household appliances, ug uban pang mga motor. Sama sa mga makina sa panahi sa panimalay ug mga makina sa pagpanahi sa industriya, vacuum cleaner, washing machine, hair dryer, mixer, source juice machine, whisk, juicer, soymilk, ug alang sa ubang mga gamit sa panimalay.
Naghatag usab kami mga serbisyo sa pag-customize sa commutator alang sa mga kostumer, ug gi-customize ang mga commutator nga lainlain ang mga porma ug materyales sumala sa mga panginahanglanon sa kostumer. Kung kinahanglan nimo kini, palihug ayaw pagduhaduha sa pagkontak kanamo.

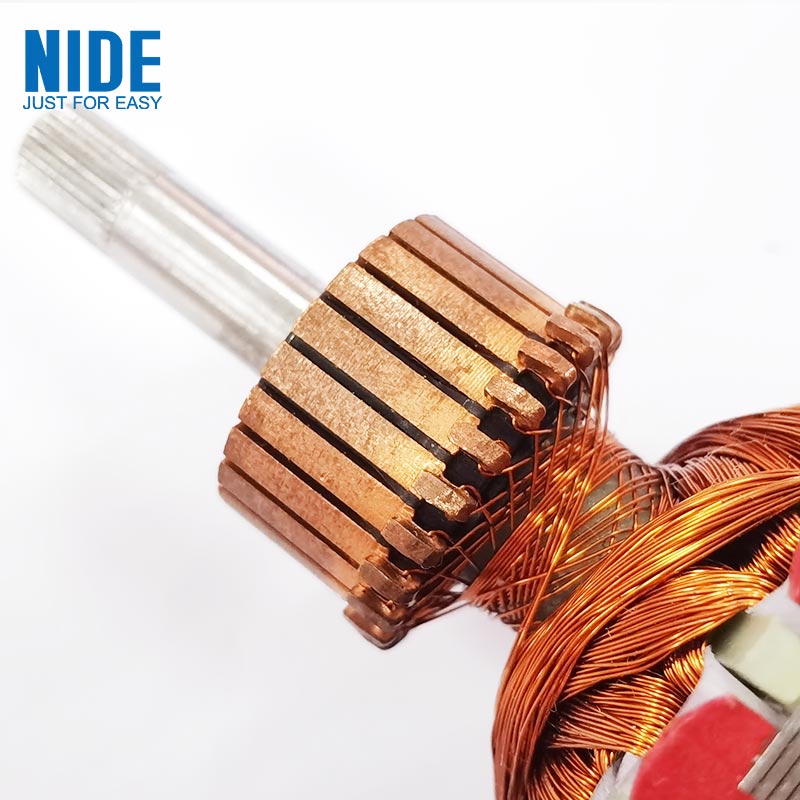

Mga Detalye sa Hook Motor Commutator
Ngalan sa Produkto: | 24-ngipon DC motor hook commutator |
Gidak-on: | 8x26x16mm o Customized |
Materyal nga: | Pilak / tumbaga / mika / plastik |
Bar: | 24 |
Kolor: | Nagbarog nga kolor |
Matang: | Hook Commutator, Segmented Commutator, Plane Commutator |
MOQ: | 10000 nga piraso |
Panahon sa paghatud: | Sumala sa gidaghanon sa order |
Mga Feature sa Hook Commutator
1. Resin nawong walay liki, bula, etc.
2. Dielectric nga kusog: bar-bar 500VAC, 1s, bar-shaft 4800VAC, 1MIN, walay pagkaguba o flash
3. Spin test: 180 °, 33000rpm, 3min, OD deviation 0.01max, bar-shaft deviation 0.005max
4. Insulation resistance: temperatura sa lawak, 500VDC mega meter, insulation resistance> 100MΩ
5. Wala'y marka nga pagtugot sa pagtugot sa GB / T1804-m
